Arturia AudioFuse Rev 2 | Compact and Versatile Audio Interface
Features:
Quality of Design and Construction
Sturdy yet compact, this device offers safety and style thanks to its sturdy unibody design, leather-trimmed top cover, and long-lasting aluminium chassis. It is a great option for mobile recording settings because it is mobility-ready and can be used in a variety of power modes, such as USB bus-powered (green mode), power adapter, or even via power bank.
Performance & Sound Engineering
In-house developed DiscretePRO® mic preamps are designed to achieve the best possible analogue performance. AKM converters provide premium AD/DA conversion, and a precise clock mechanism guarantees jitter-free operation.
Fidelity specifications:
- Response to Frequency: 20 Hz to 20 kHz ±0.08 dB
- Dynamic Range: analogue outputs and monitors up to 119 dB
- Mic THD+N: usually better than -104 dB;
- Mic EIN: approximately -131.5 dBu
- High-quality connectivity

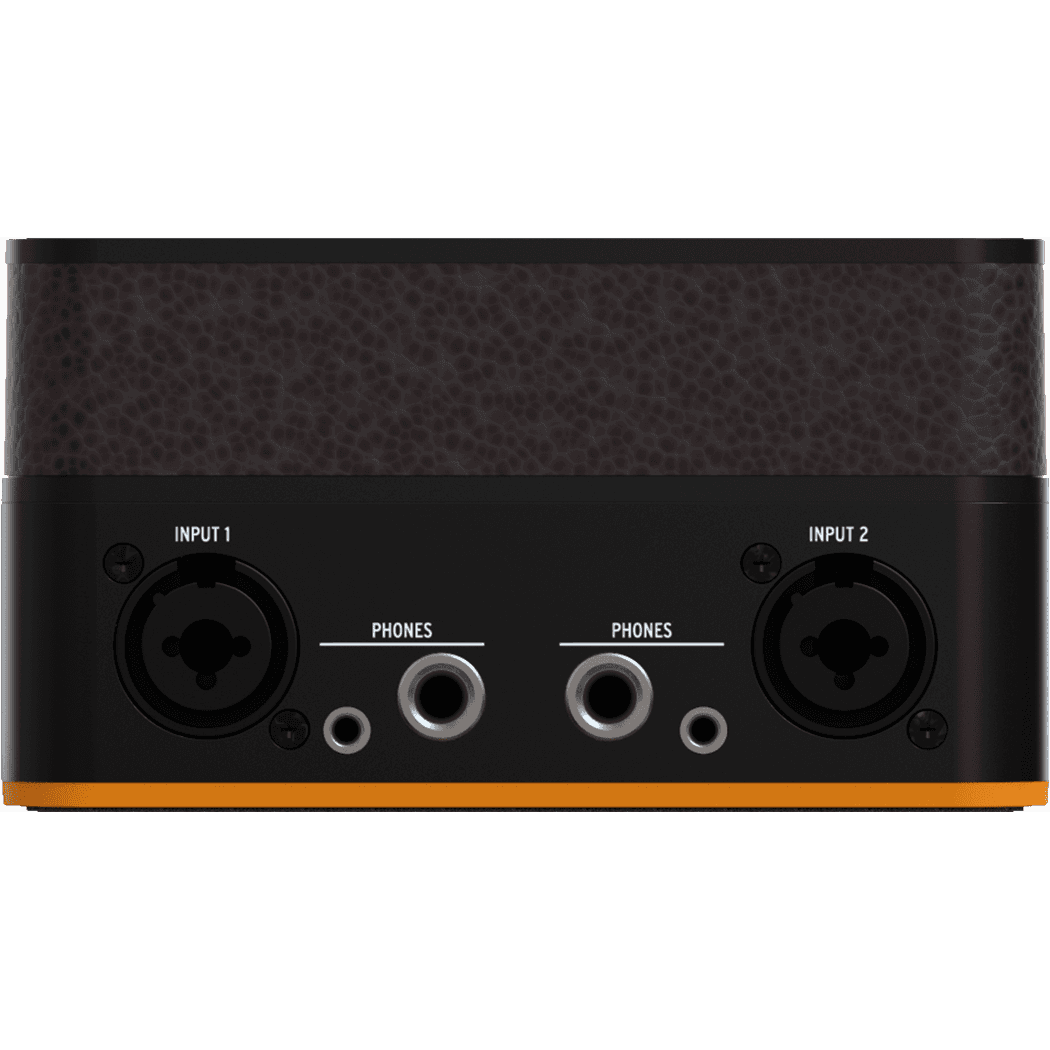

- Two combo XLR‑¼″ inputs (mic/line/Hi-Z) are analogue inputs.Two more phono (RIAA) or line-level RCA/jack inputs
Analogue Devices:
- Four outputs of a balanced ¼ line
- Two separate 3.5mm and ¼mm headphone outputs

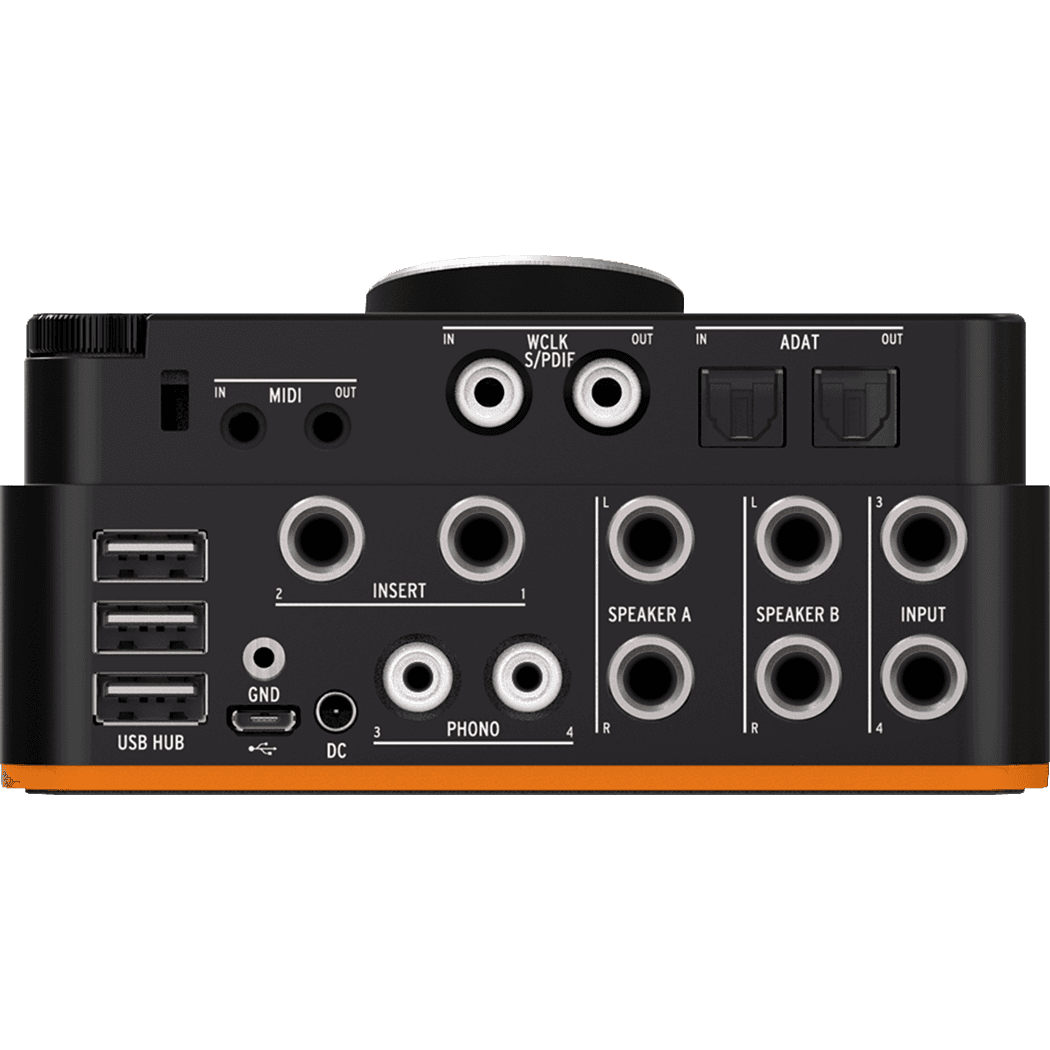

Digital I/O:
- Up to 8 channels of ADAT In/OutCoaxial In/Out S/PDIFWord Clock Out/In (RCA shared)MIDI In/Out through the included adaptor
Workflow & Monitoring in the Studio

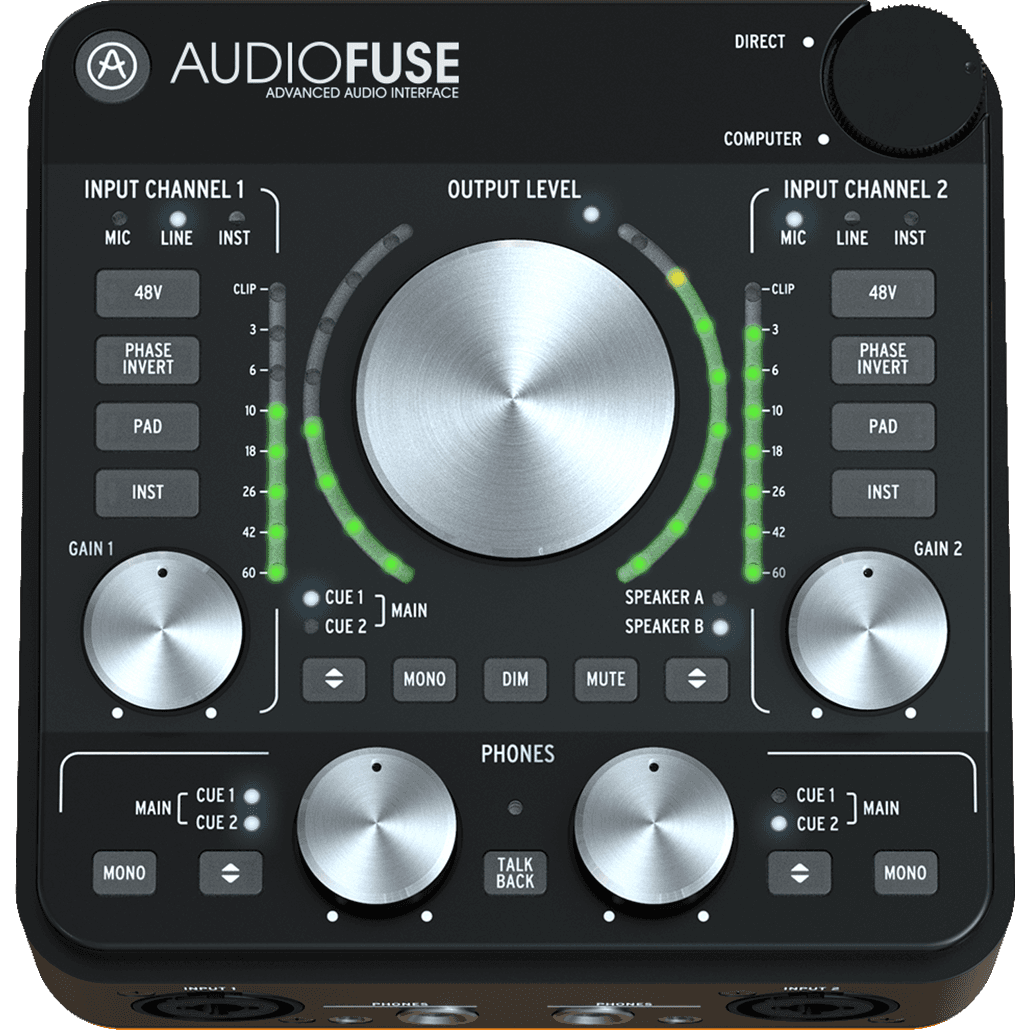

- The top panel contains mixer-like controls, including knobs for pads, phantom power, phase invert, mute, dim, mono, and A/B monitor switching, which provide quick and tactile access.
- Zero-latency monitoring is ensured via direct monitoring with separate master and monitor mixes, which is essential for performance circumstances.
- Integrated talkback microphone, useful for live or studio conversation.
Specifications:
- Colour : Black
- Compatibility : PC, Mac, iOS, Android
- Digital input type : S/PDIF, Adat
- Digital output type : S/PDIF, Adat
- Dimensions (mm) : 18 x 17 X 14,7
- Format : desktop
- Interfacing : USB 2.0
- MIDI : Yes
- Max resolution : 24-bits
- Number of analogue inputs : 6
- Number of digital inputs : 2
- Number of digital outputs : 2
- Number of inputs : 6
- Number of instrument inputs : 4
- Number of microphone inputs : 2
- Number of outputs : 6
- Phantom power supply : Yes
- Power supply : USB, AC Adapter (DC 9 V)
- Provided software : AudioFuse Creative Suite
- Sampling frequency : 192 kHzWeight : 1.70 kg
