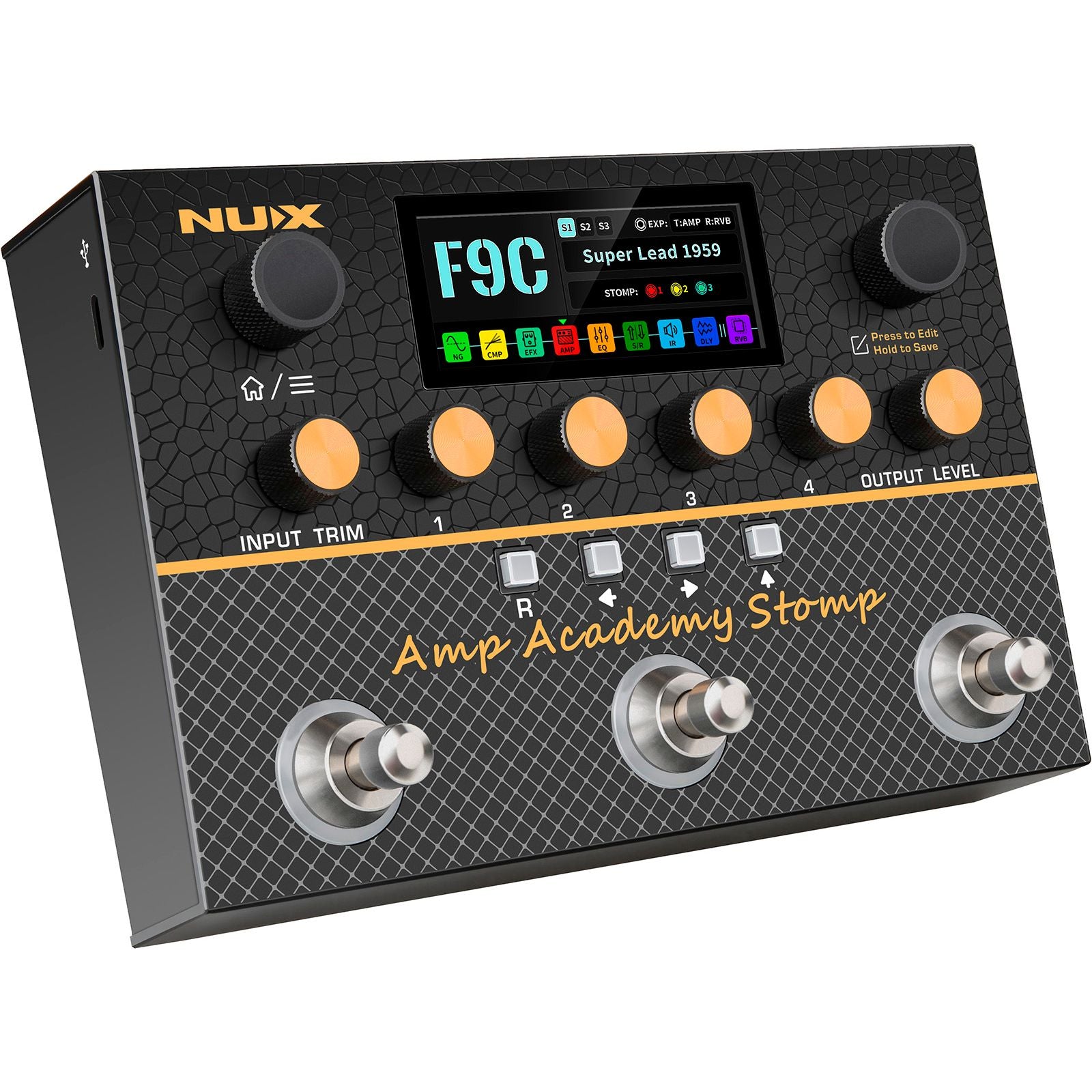

For musicians seeking studio-caliber tone in a pedalboard-ready packaging, the NUX Amp Academy Stomp is a professional-grade guitar amp modeller and multi-effects processor in a sturdy stompbox design. With remarkable realism and emotive touch response, it replicates the preamp and power amp stages of vintage tube amplifiers using NUX's sophisticated TSAC-4K physical modelling engine.

Modeling Algorithm

Its powerful dual-DSP design, which separates effects processing from amp modelling, provides ultra-low latency and rich, dynamic sound. Deep, realistic speaker simulation is provided by stereo CYBER IRTM cab emulation with independent left/right IR loading. You may adjust virtual microphone type, position, and distance for precise tone shaping.

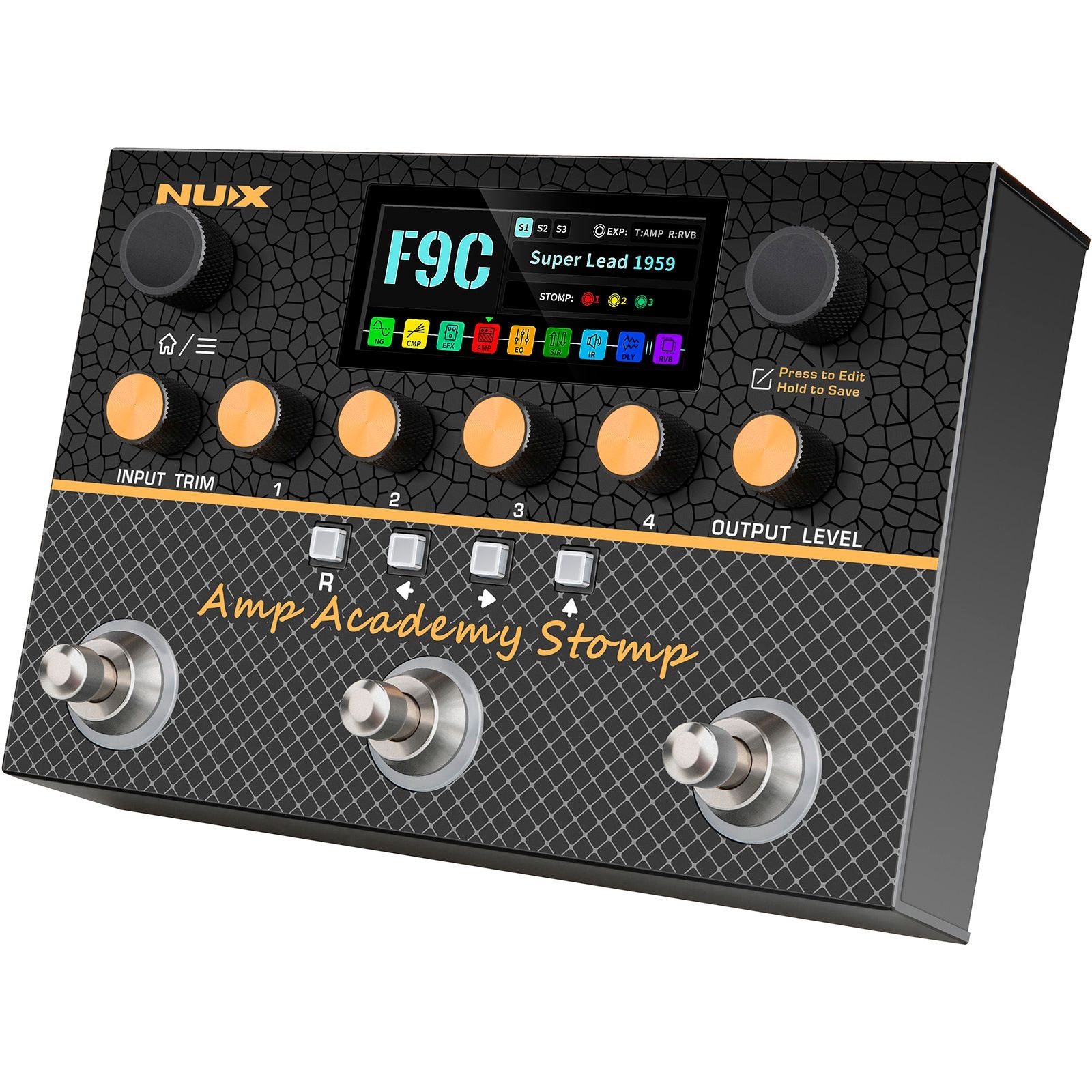

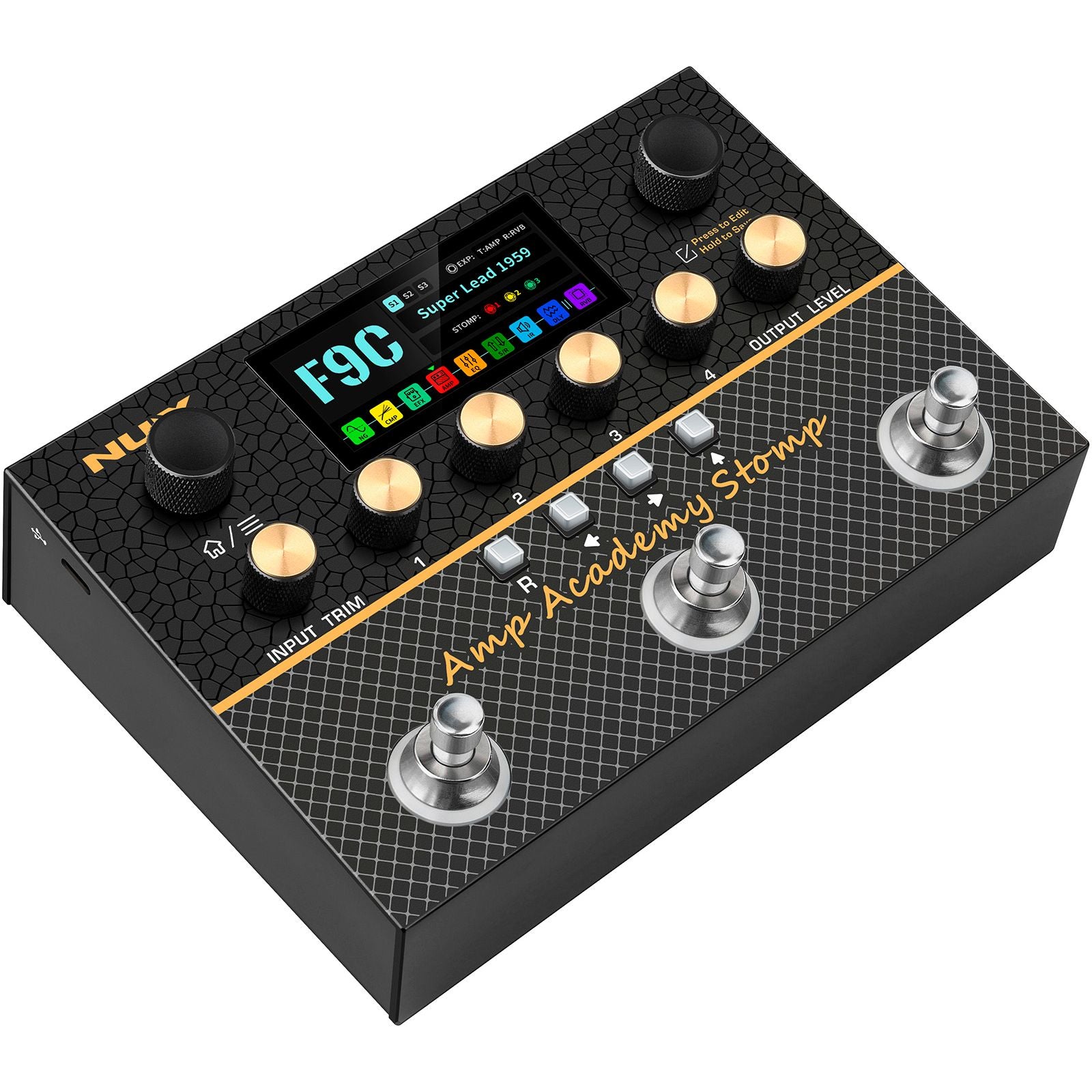

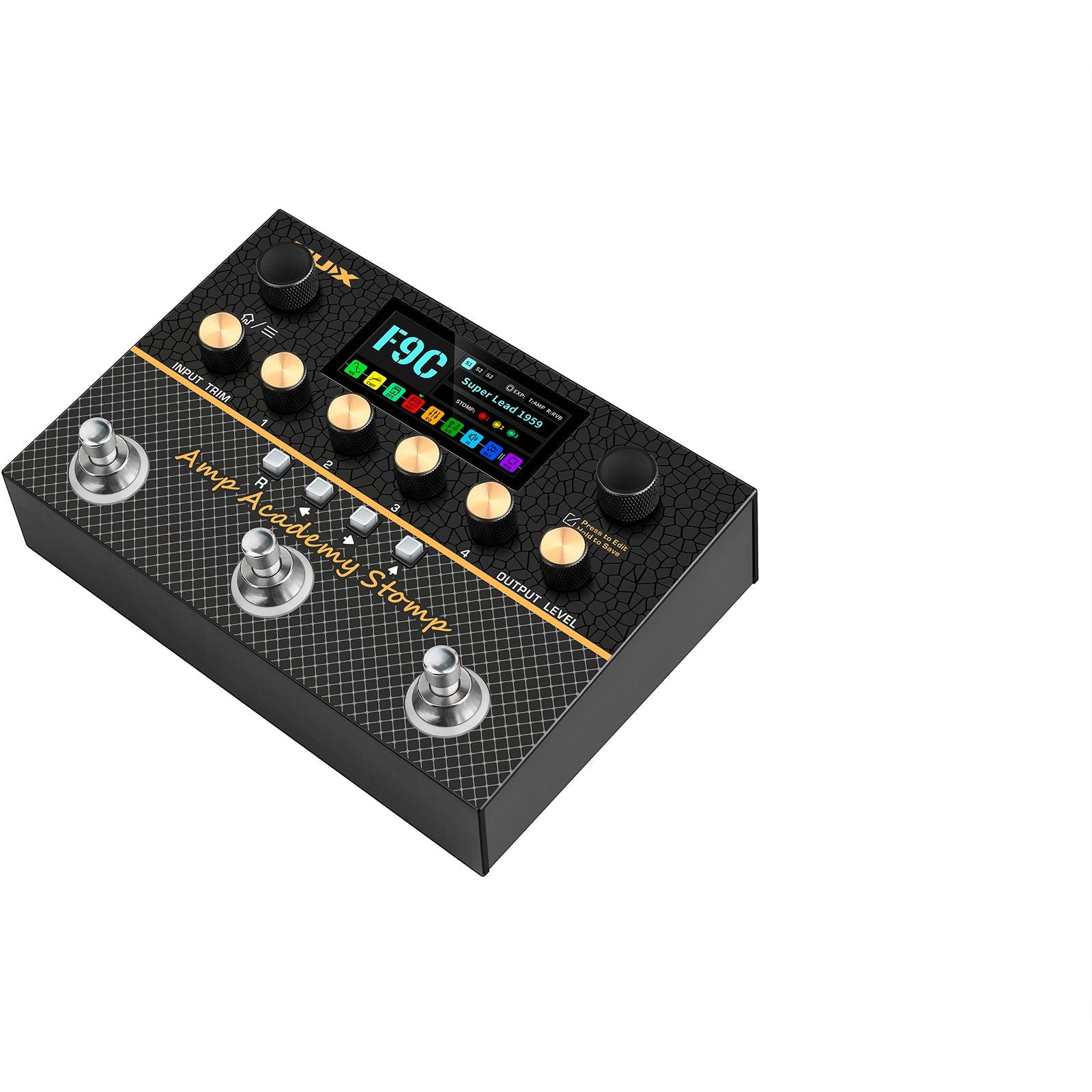

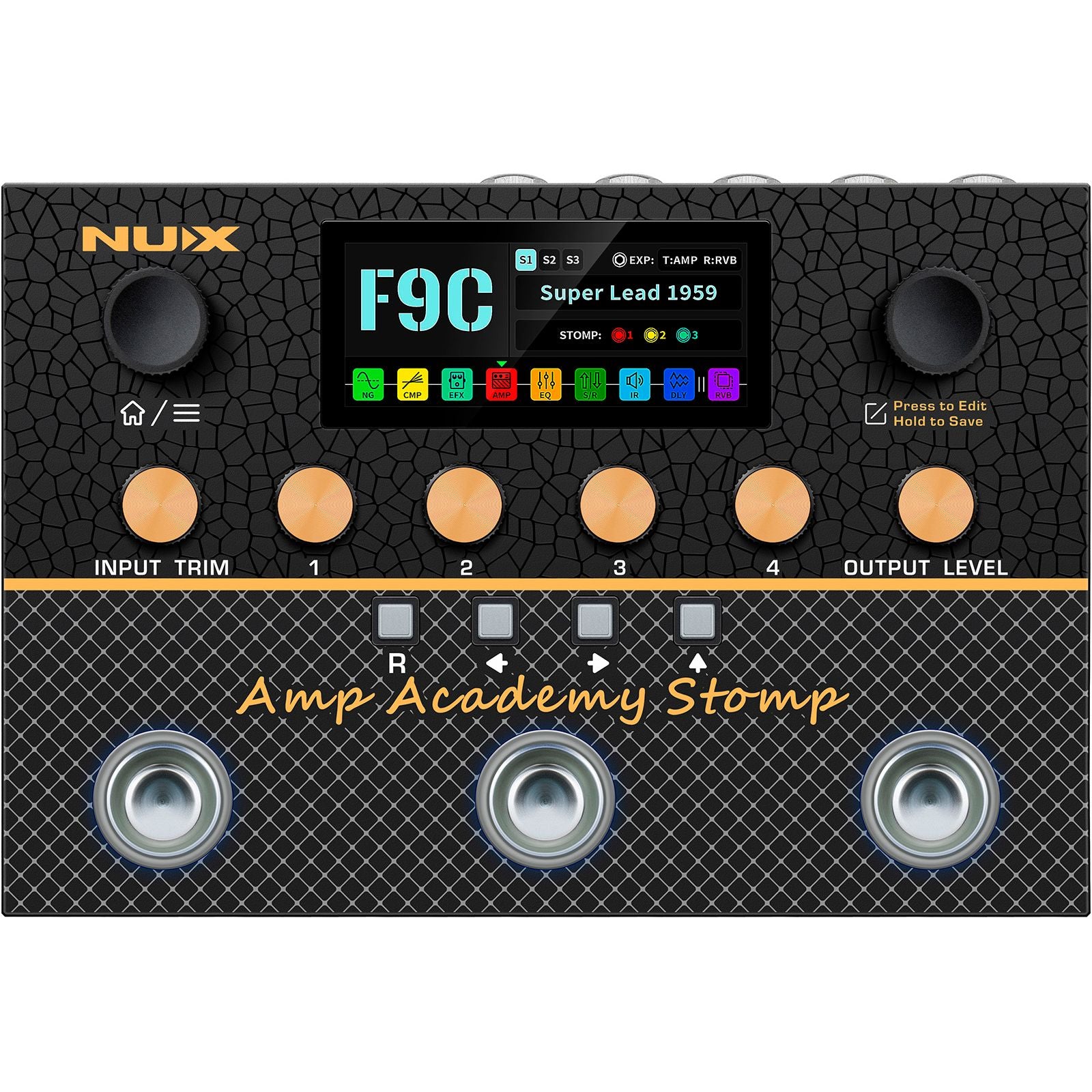

The Amp Academy Stomp's 2.86-inch full-colour LCD display, three scenes, 27 presets, and user-friendly interface make it simple to create comprehensive setups on the pedal. A 30-second stereo looper, nine adjustable effect blocks (noise gate, compression, EQ, delay, reverb, and more), and serial/parallel effects routing choices allow you to customise your signal chain.

Connectivity

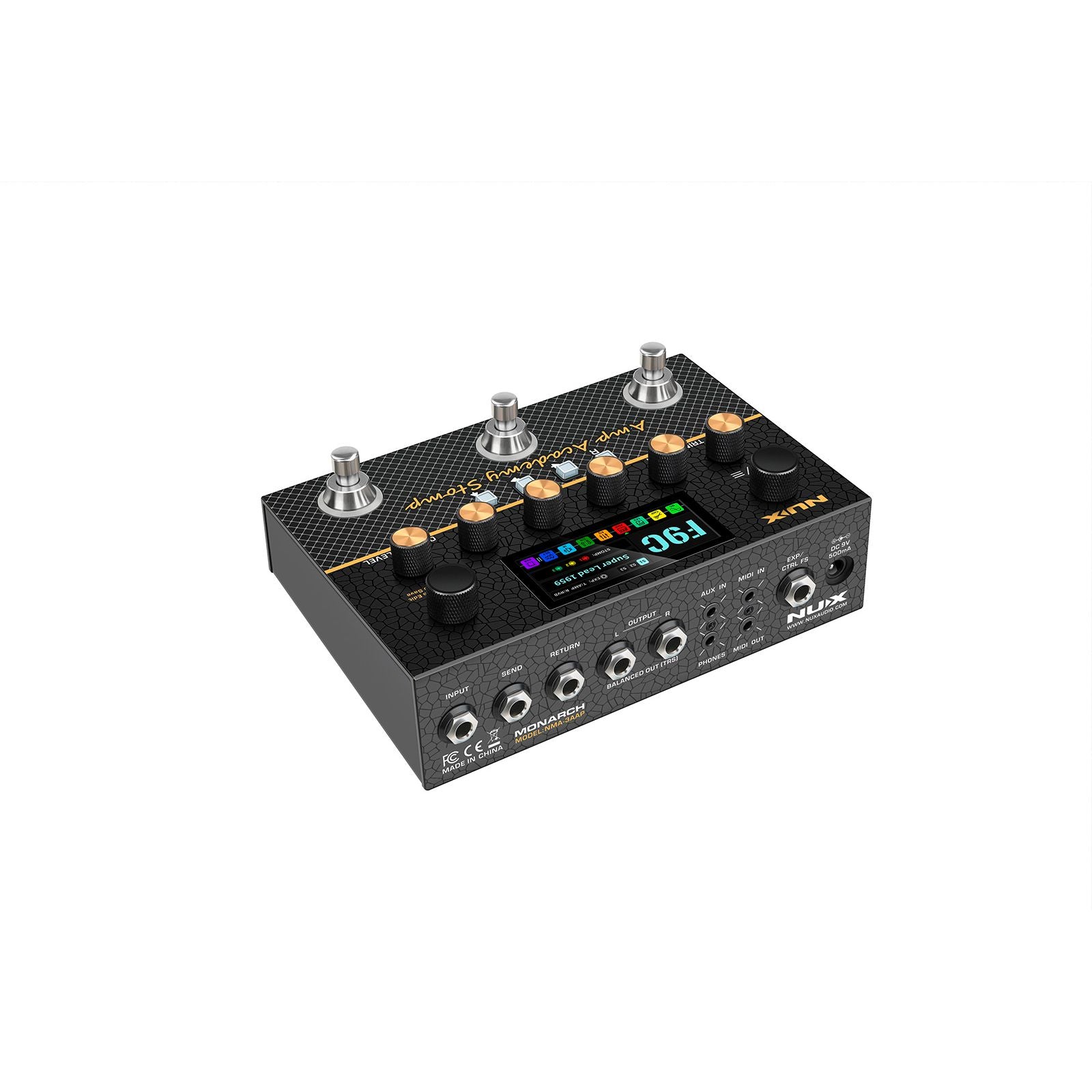

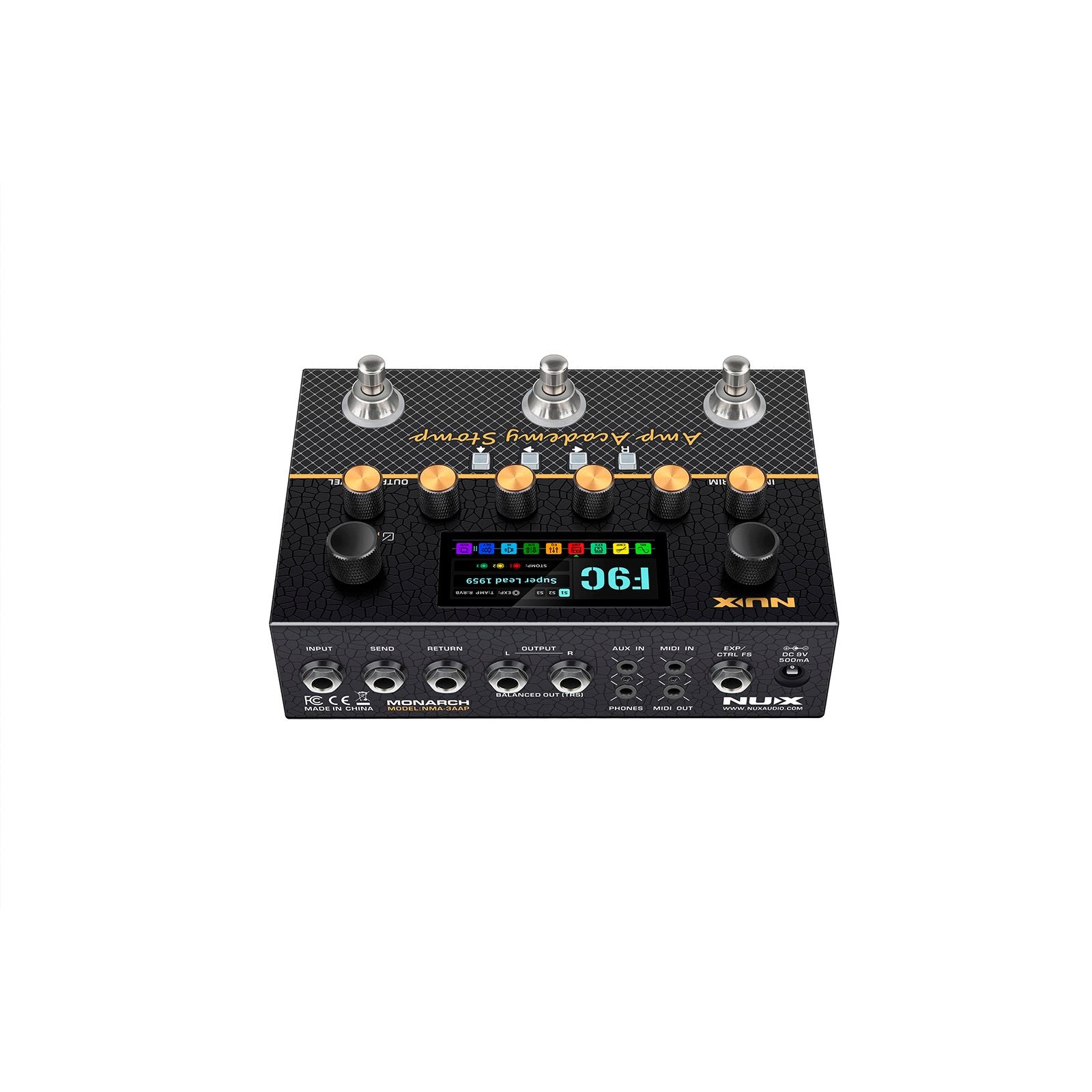

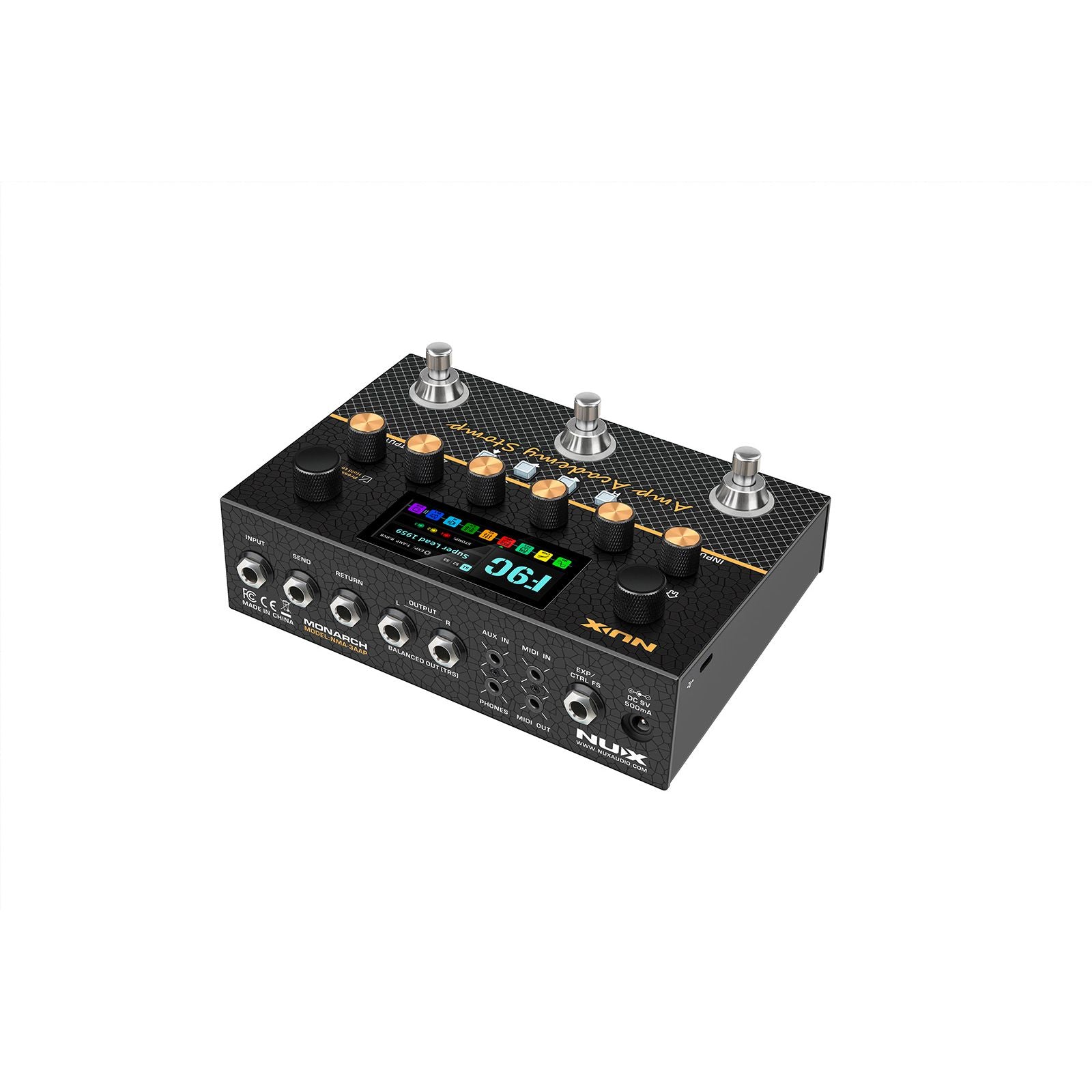

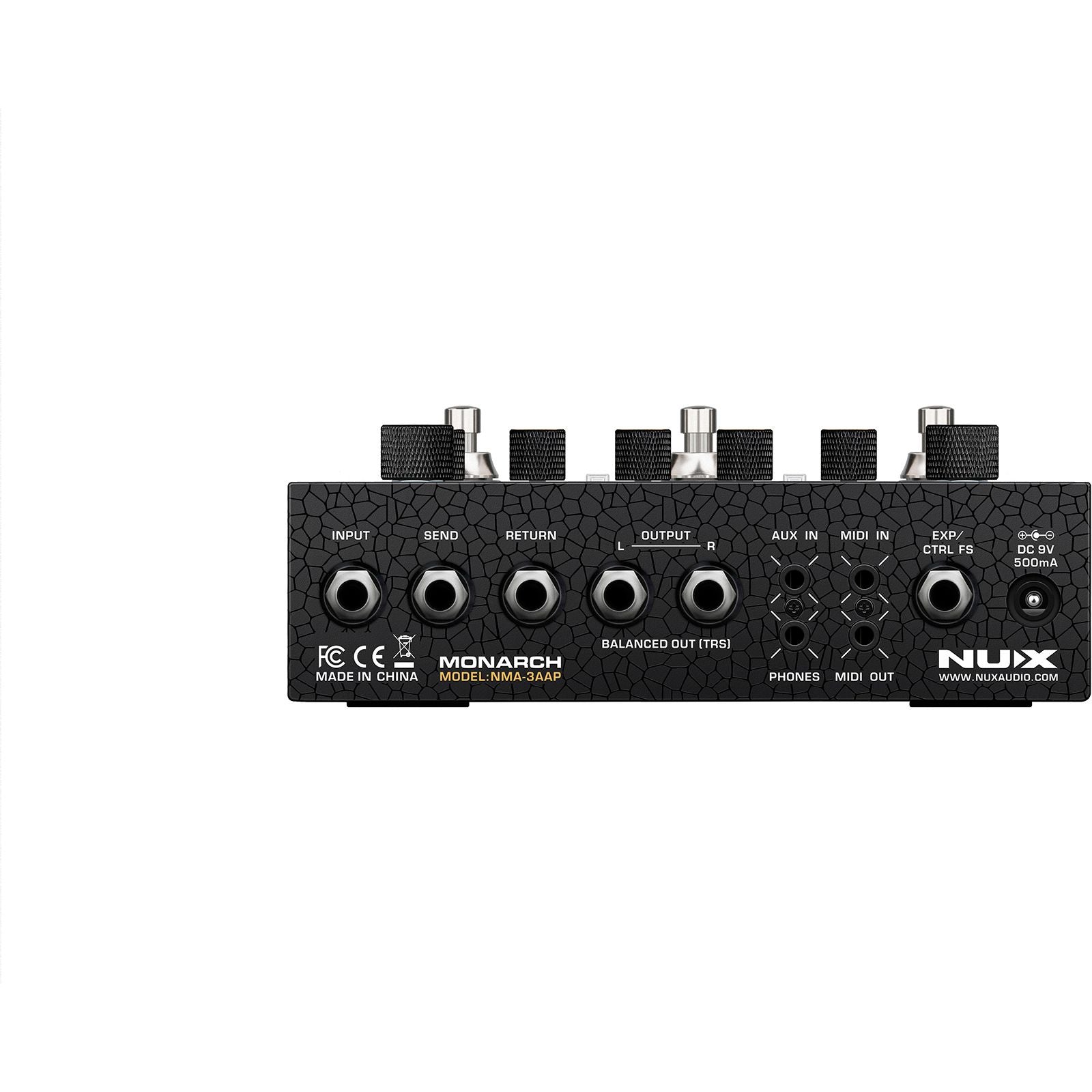

Comprehensive connectivity includes MIDI In/Out, balanced stereo outputs for PA or FRFR speakers, an EXP/CTRL jack (together with the integrated NMP-2 Lite footswitch), and a send/return loop for external equipment. The pedal may be used as a 24-bit/48 kHz audio interface for recording or DAW integration via a USB-C connector, and wireless control and backing-track playback are made possible by the included NBT-1 Bluetooth module and a companion app.

Specifications:

• Pedal Type: Amp Modeling, Multi-FX
• Analog/Digital: Digital
• Presets: 27 x Factory, 27 x User
• Number of EFX blocks: 9 (NG, CMP, EFX, AMP, EQ, S/R, IR, DLY, RVB)
• Impulse Responses: Left & Right, 60 x Factory Cyber IRs, 40 x User IRs
• USB: USB-C for 24-bit / 48 kHz USB AUDIO, USB MIDI (PC Editor), firmware update, NBT-1 Bluetooth Module with APP control
• Bluetooth: Additional NBT-1 Bluetooth Module with APP control
• Expression Control: Yes, external EXP or additional NMP-2 Lite footswitch
• Bypass Switching: Buffered Bypass
• Software: Amp Academy Stomp editor (PC), Amp Academy Stomp APP
• INPUT/RETURN Impedance: 1MΩ
• AUX IN Impedance: 10 kΩ
• OUTPUT L/R Impedance: 100 Ω (balanced)
• SEND Impedance: 1 kΩ
• PHONES OUT Impedance: 10 Ω
• INPUT to OUTPUT L/R Dynamic Range: 111 dB
• Sampling Rate: 48 kHz / 32-bit
• System Latency: Minimum 2 ms
• Power: 9V DC (center negative)
• Current Draw: < 500 mA
• Dimensions: 183 (L) x 130 (W) x 65.3 (H) mm
• Weight: 0.9 kg/1.98 lbs
