Professional-quality wireless performance

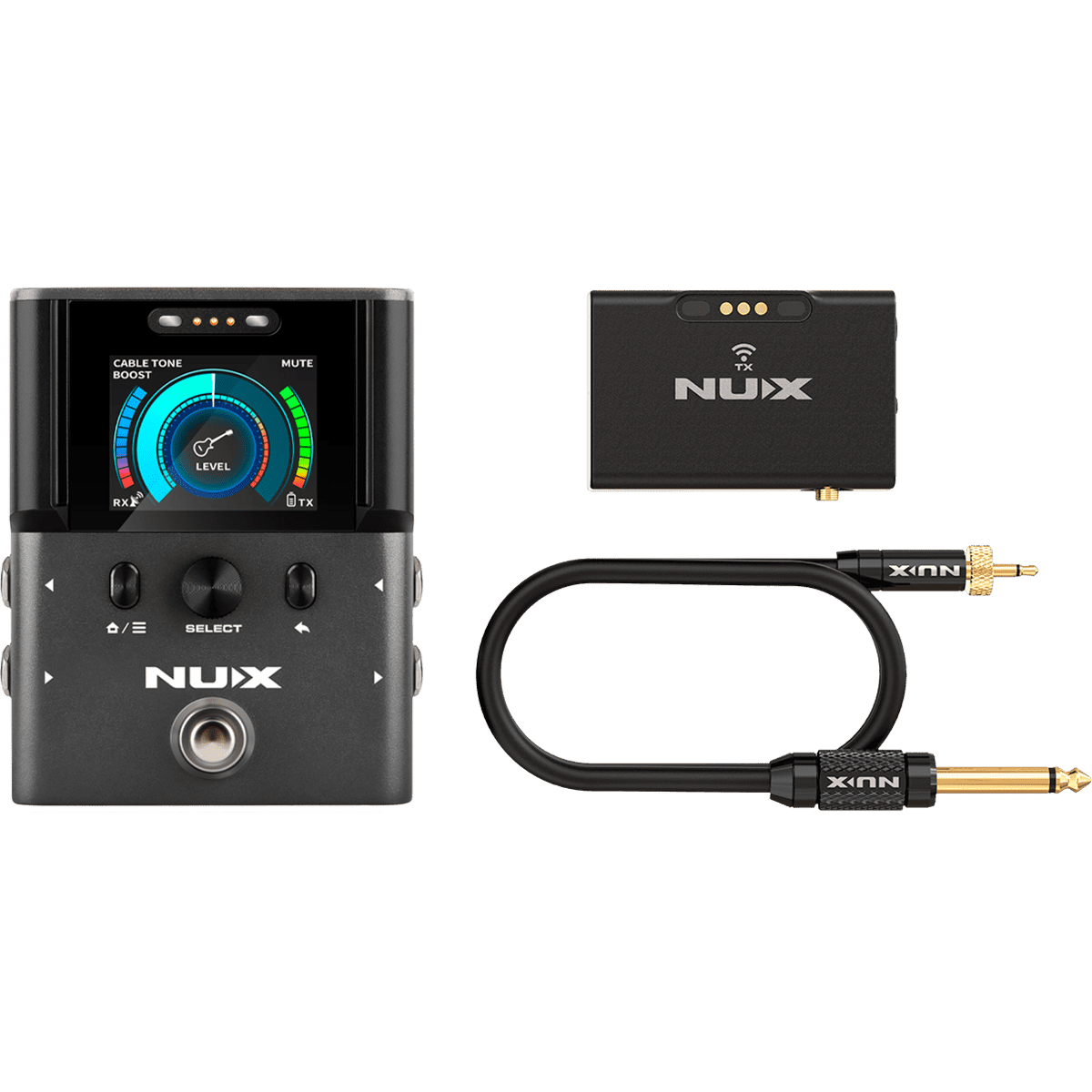

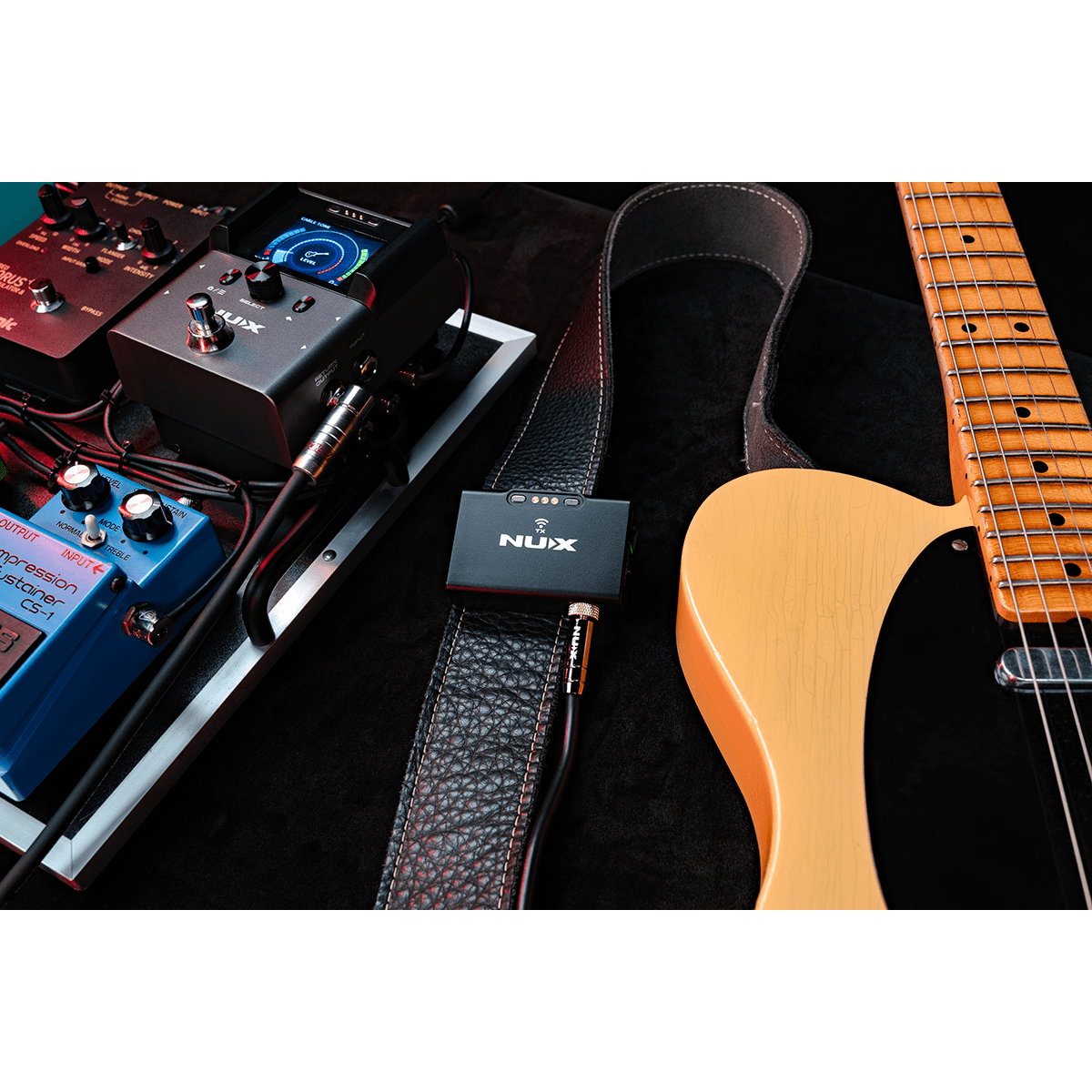

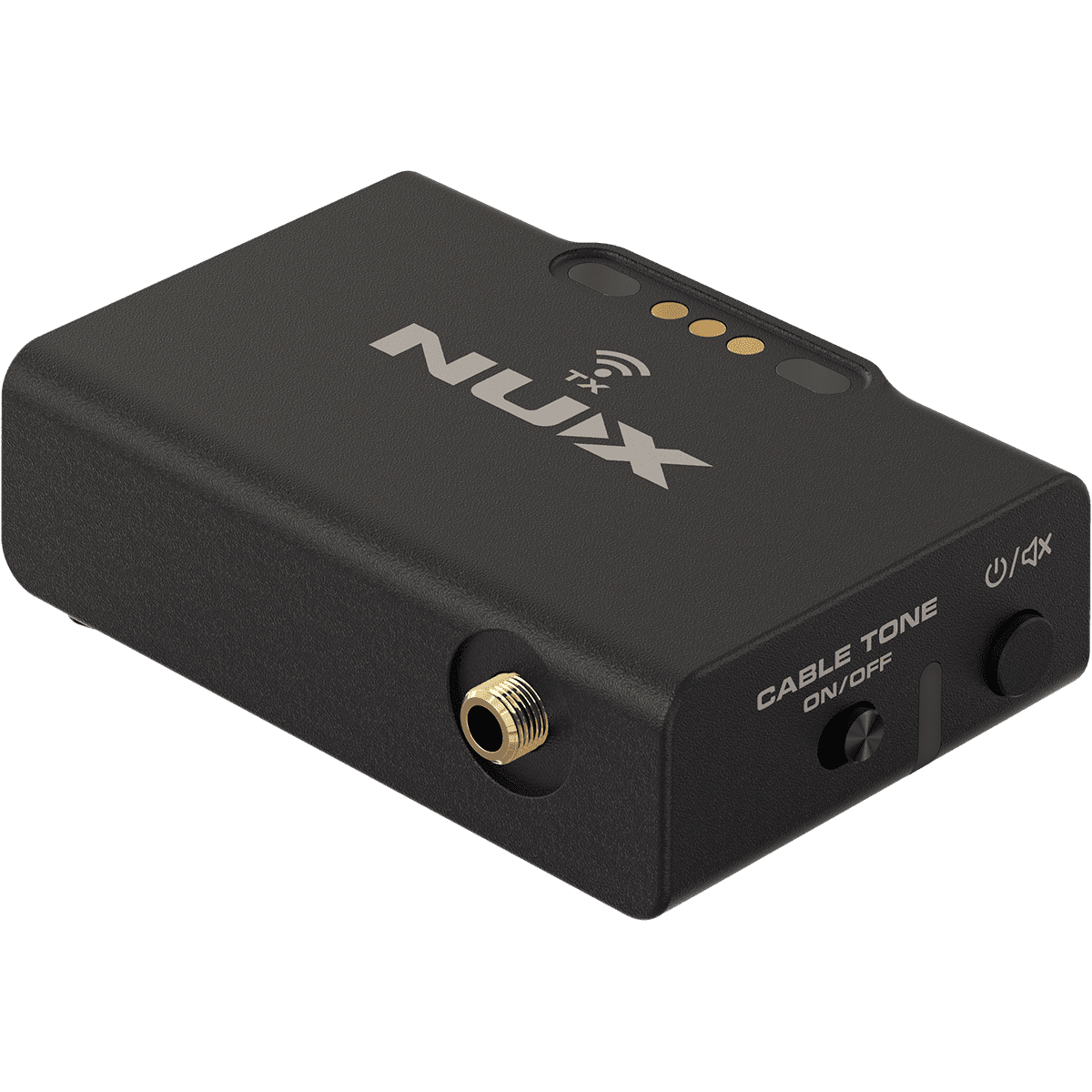

Nux has created the B-8, a small battery-operated transmitter that instantly couples with the pedal-format receiver and is ideal for integration with your pedalboard, carrying on the legacy of high-performance wireless systems. For optimal performance and playing experience, it operates in the 2.4 GHz wifi band and provides high-quality 24-bit/48 kHz audio transmission with a transmission delay of 2.5 ms (instantaneous) to 8.7 ms (signal stability). Depending on the quality of the playing area, its operational range can reach up to 60 meters, providing the greatest amount of mobility.

Versatility and simplicity for all instruments

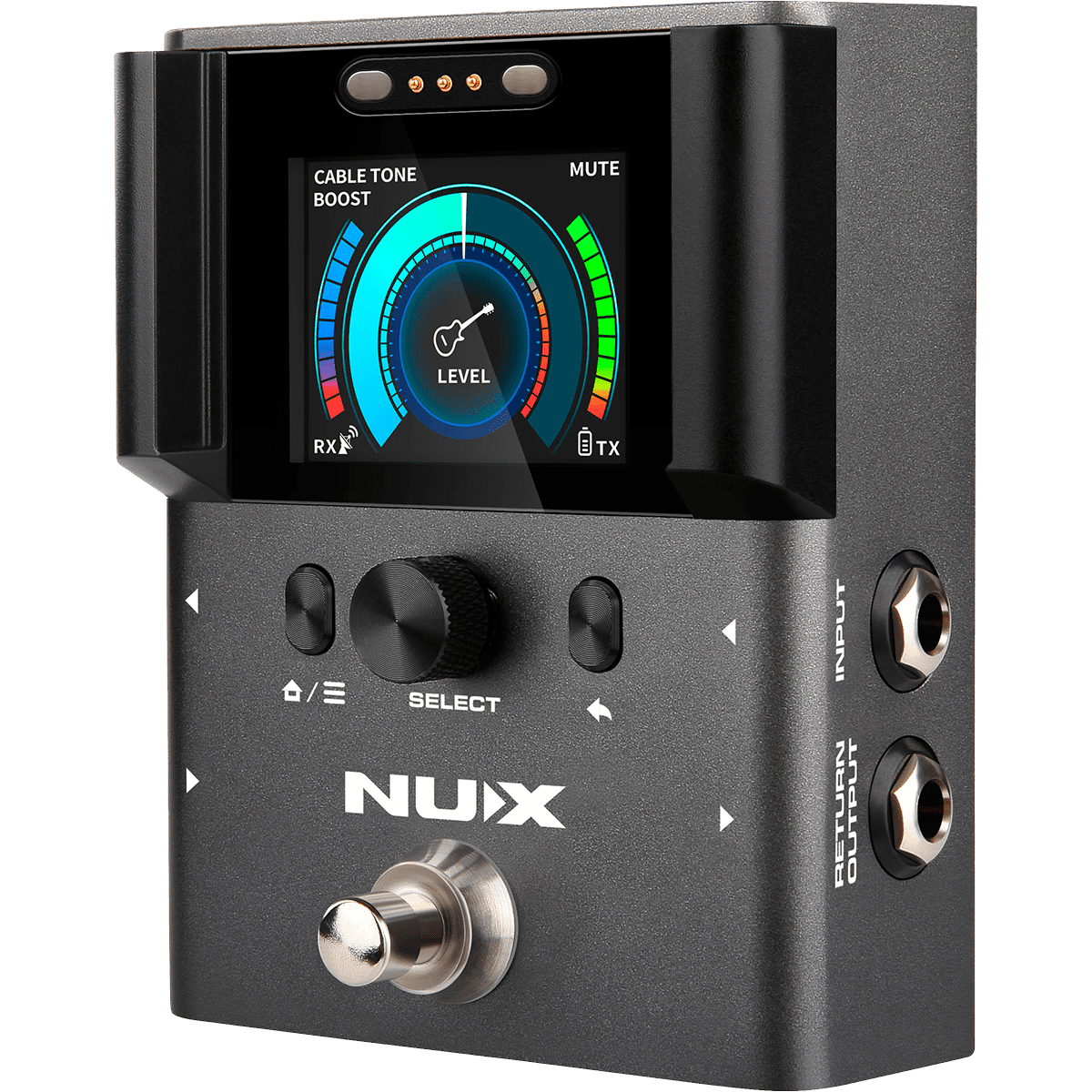

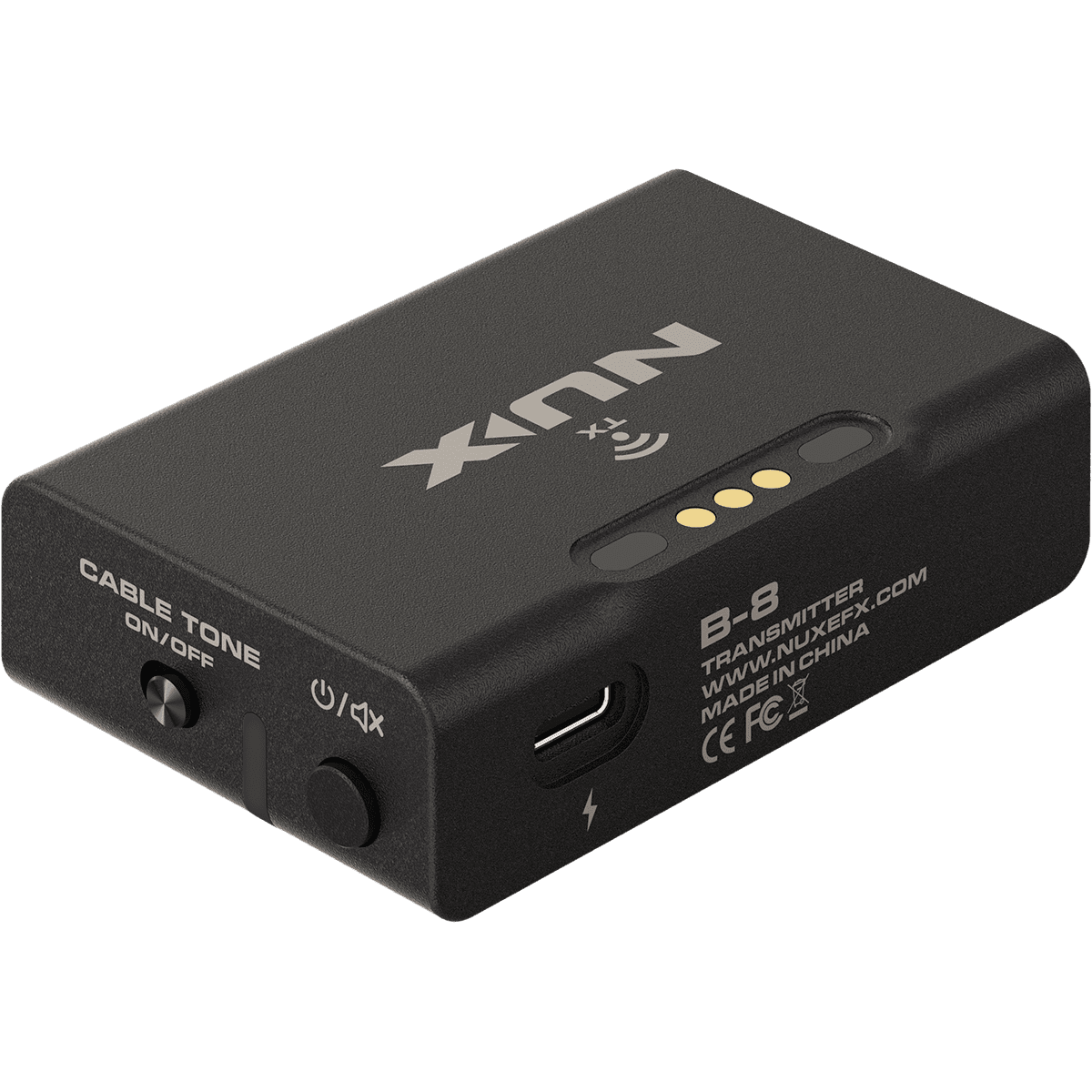

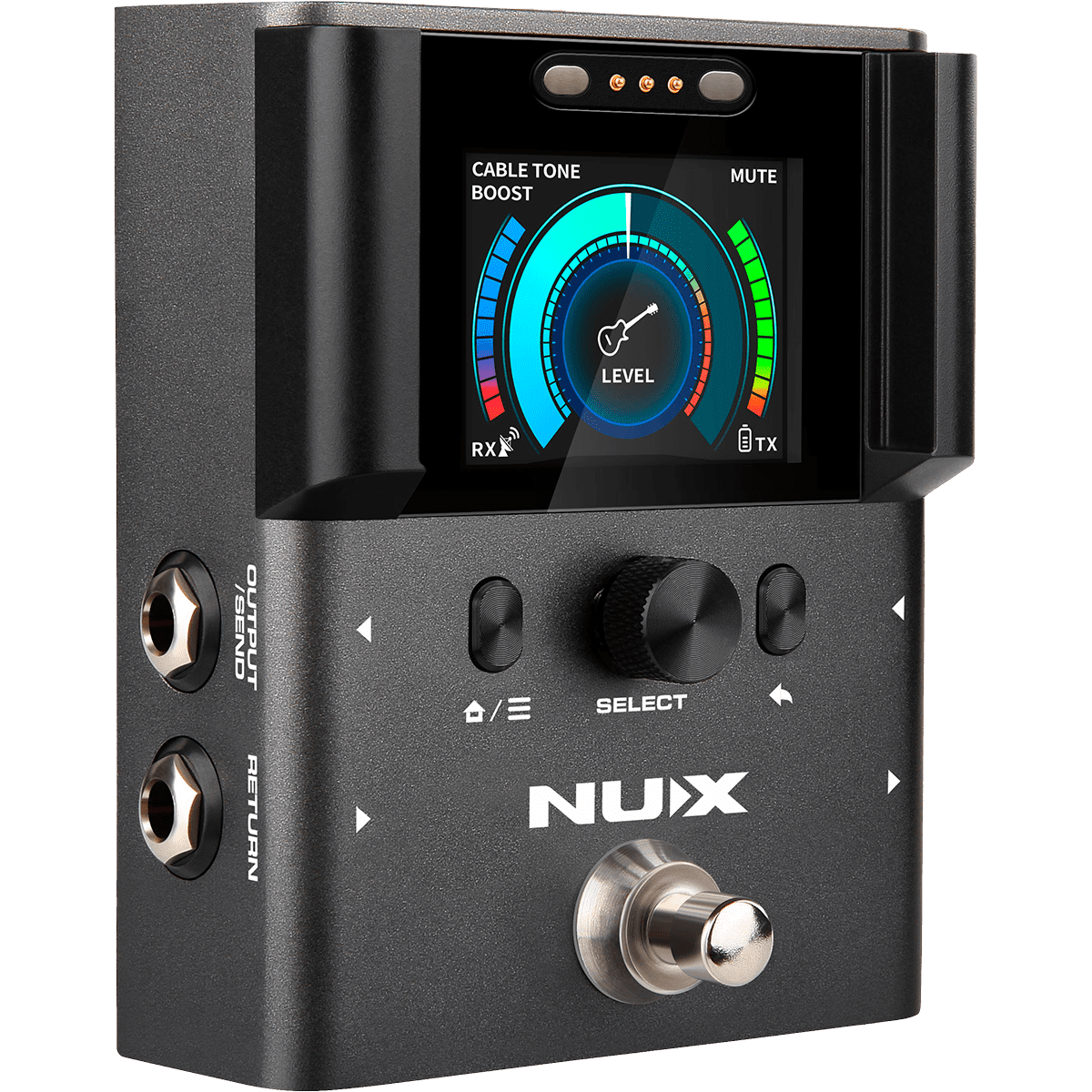

Numerous instruments, such as bass guitars, electro ukuleles, and electric and electro-acoustic guitars, may be used with the Nux B-8 wireless system. The transmitter's battery lasts up to 6.5 hours, it's simple to operate, and synchronisation between the transmitter and receiver just takes a few seconds! The transmitter's battery may be recharged via the included USB-C connection or by attaching it onto the receiver's colour LCD screen. Additionally, the receiver's USB connector makes it simple to modify the start-up screen graphic and upgrade the firmware.

Modern, advanced features

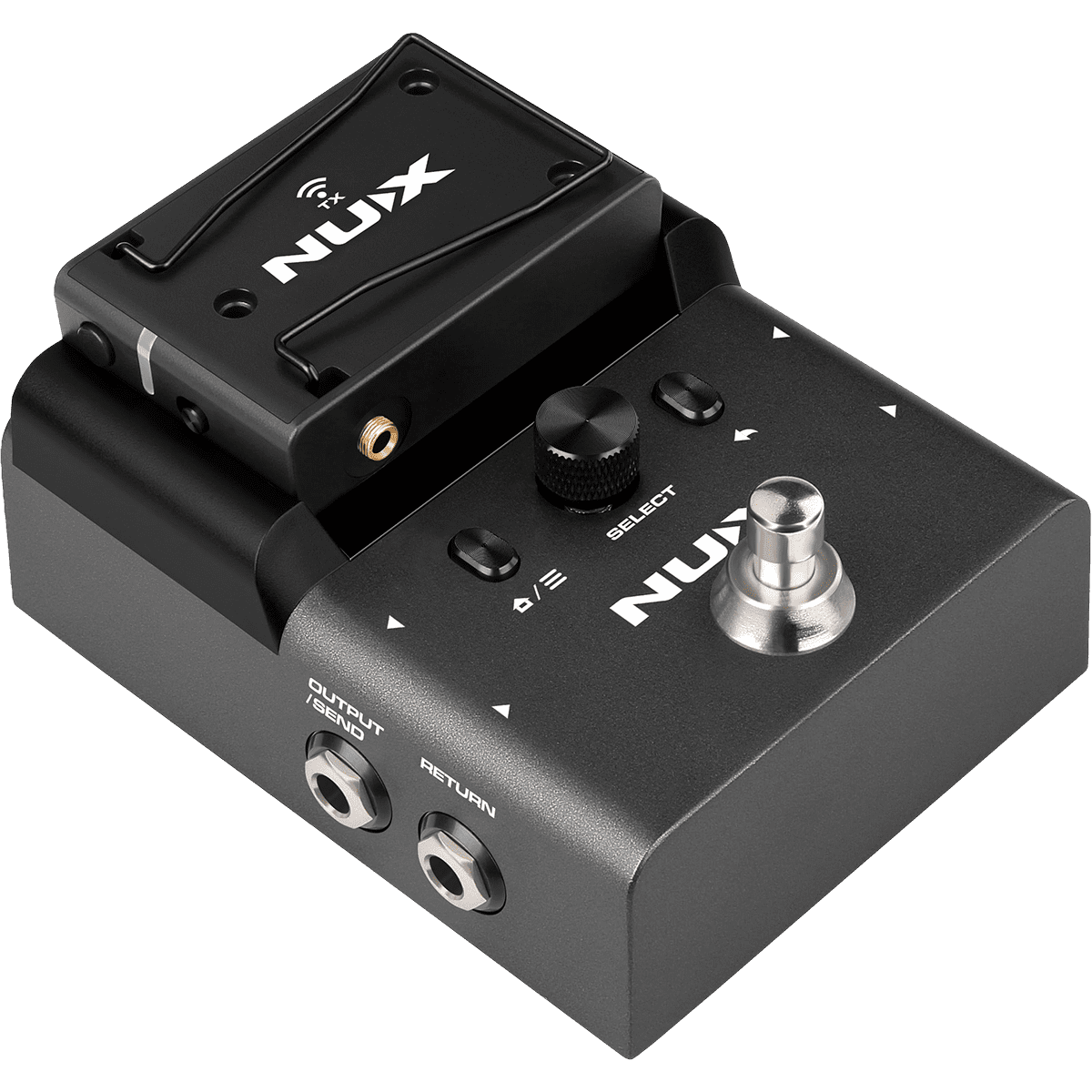

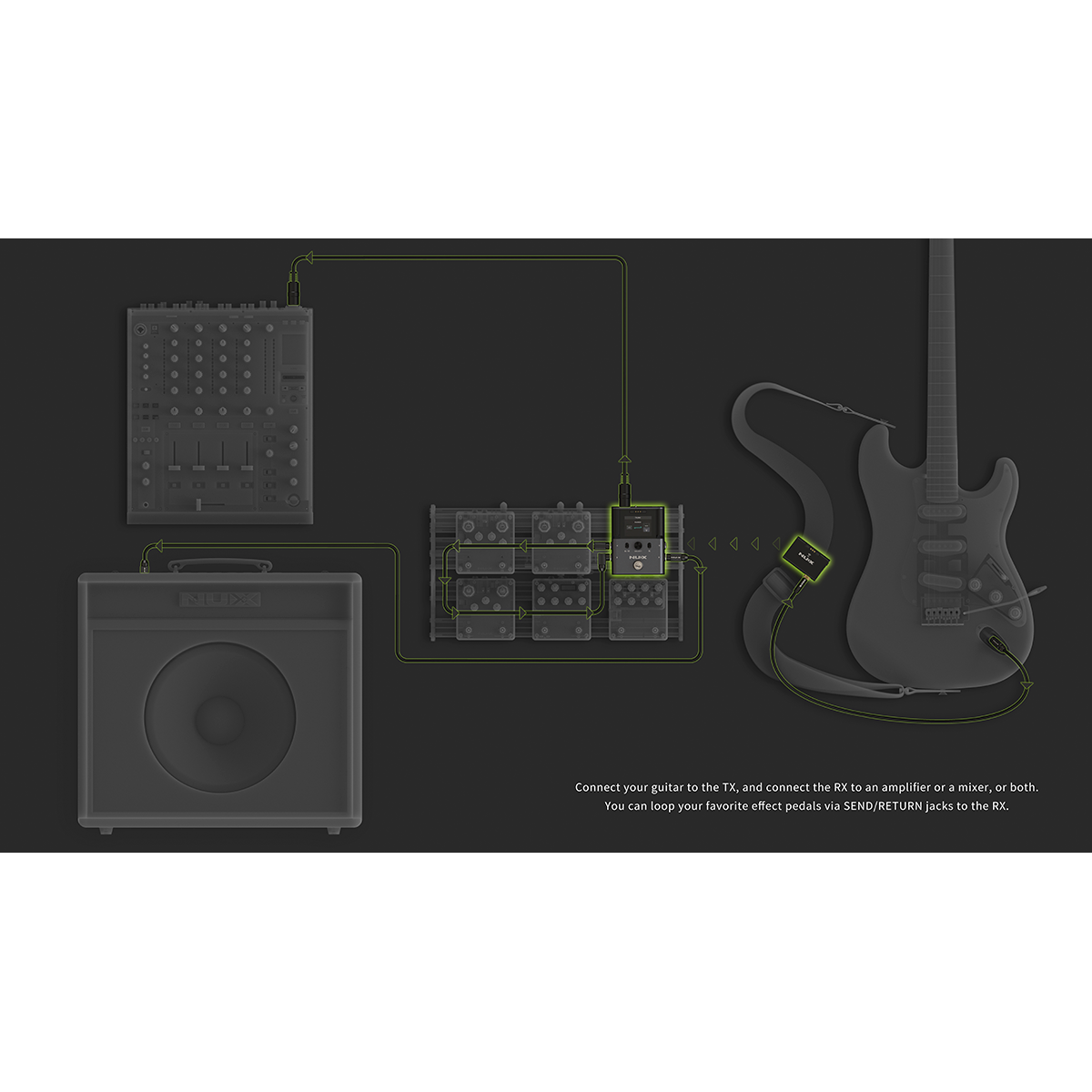

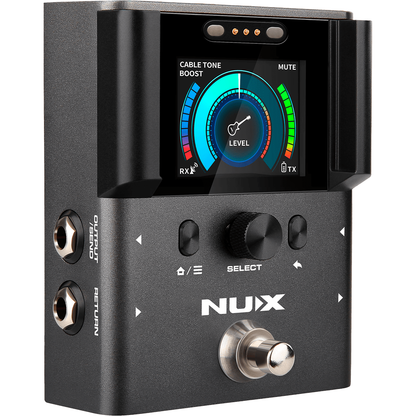

The B-8 is loaded with cutting-edge, innovative features to satisfy musicians of all stripes, in addition to a polished, reliable wireless system. Despite using a wireless system, guitarists occasionally want a "rounder, warmer" sound, and the activatable "Cable Tone" function replicates the frequency spectrum of a jack cable's impedance. Additionally, a built-in tuner with several tuning and display modes is activated via the footswitch on the receiver. Additionally, this footswitch may activate a +12 dB boost to enhance your solos or strengthen your signal! You may add more effects pedals to your signal chain and transfer the signal back to your amplifier cleanly thanks to a clever effects loop.

Specifications:

• Autonomy : ± 6 hours
• Colour : Grey
• Frequency band : 2,4 GHz
• Frequency response : 20 Hz - 20 kHz
• Frequency scanner : No
• Indicative range : 50 m
• Max. number of simultaneous systems : 10
• Removable antenna : No
• Transmitter sync : Automatic pairing
• Operating Frequency Band: 2400-2483.5 MHz
• Transmission Power: <10 mW EIRP
• Audio Quality: 24 bit/48 kHz
• Latency: 2.5 ms (best performance setting)-8.7 ms (safety mode)
• Input Impedance: 1 MΩ
• Maximum Input Level: 1 kHz at 1% THD +6.2 dBV (5.78 Vp-p)
• THD+N: 0.01% 1 kHz, typical
• Dynamic Range: 122 dB, A-weighted (OUTPUT/SEND)
• Output level Adjustment Range: mute -64 dB~0 dB
• Auto-sleep Mode: N/A
• Built-in Battery Capacity: 3.7 V/500 mAh Rechargeable Li-polymer (Transmitter)
• TX Battery Life: up to 6.5 hours

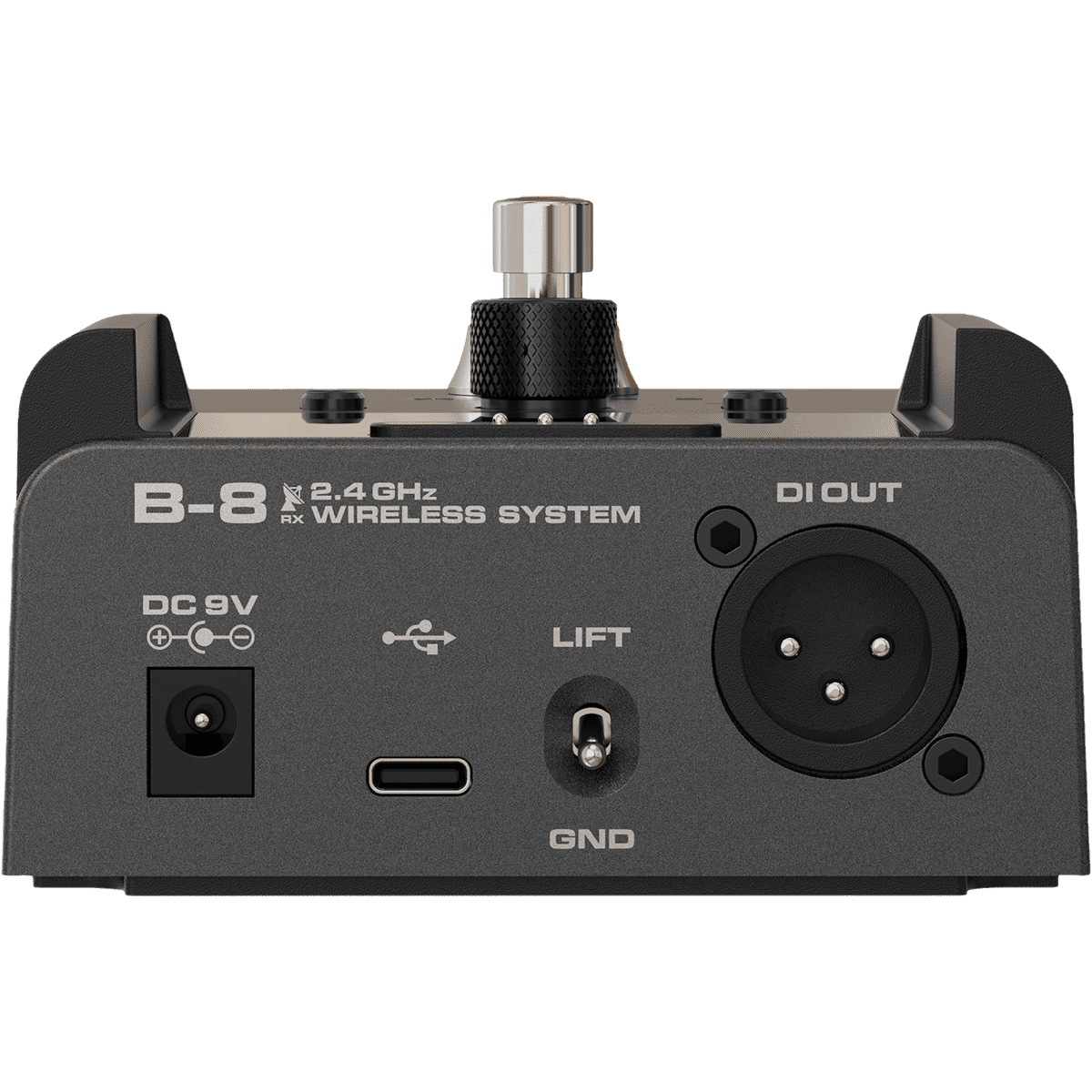

• Power Requirements: 7 V to 12 V DC, 500 mA min, negative tip power supplies (Receiver)
• Operation Range: Up to 50 m (165 feet) maximum
• TX dimensions: 72.5 (L) x 49.3 (W) x 23 (H) mm
• TX weight: 63 g
• RX dimensions: 122 (L) x 95 (W) x 60 (H) mmRX weight: 500g
